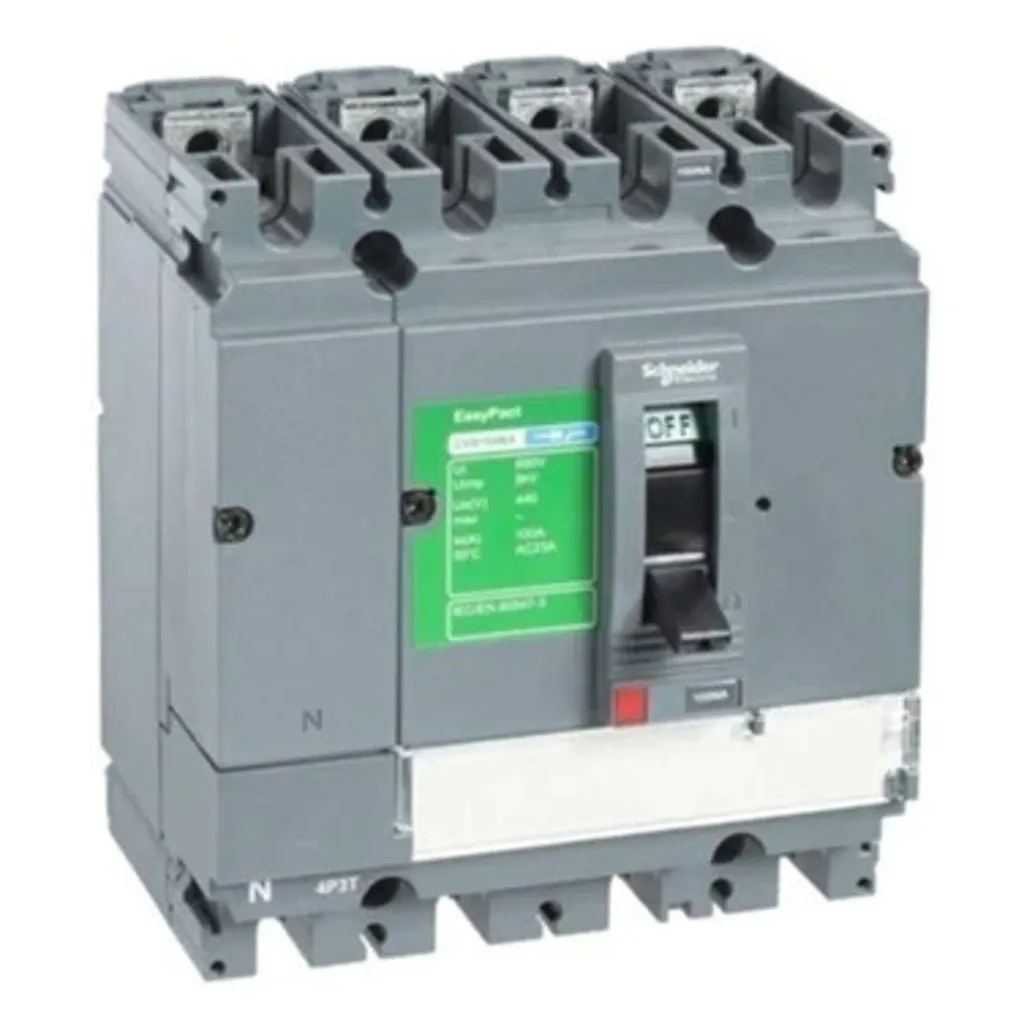

Product Description
-
Suitable For Isolation With Positive Contact Indication As Defined By Standard IEC 60947-3
-
Compliance To Utilization Categories AC22A or AC23A
-
Self Protected Due To High Magnetic-Set Release
-
Two Frame Sizes Upto 630A
-
Available In Fixed Version
-
Common Accessories As That Of EasyPact CVS Circuit Breaker
Product Specification
|
Brand |
Schneider |
|
Model |
EasyPact CVS |
|
Product Code | Reted Current |
LV510426 | 100 A LV516426 | 160 A LV525426 | 250 A LV540401 | 400 A LV563401 | 630 A |
|
Product Type |
Switch Disconnector |
|
Color |
Black |
|
No Of Poles |
4 Pole |
|
Device Application |
Distribution |
|
Network Type |
AC |
|
Breaking Capacity |
NA |
|
Earth-Leakage Protection |
Without |
|
Network Frequency |
50/60 Hz |
|
Control Type |
Toggle |
|
Mounting Mode |
Fixed |
|
Mounting Support |
Backplate |
|
Upside Connection |
Front |
|
Downside Connection |
Front |
|
Dimension |
161 mm x 140 mm x 86 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
